CERATECH High Heat Insulating Coating (HH200) is an emulsion of high-grade acrylic resins in water designed for substrates that reach temperatures of up 200°C without polymerization breakdown. However, the recommended temperature to achieve optimum effectiveness is up to 180°C.  This coating dries by evaporation to yield a tough, velvety non-yellowing water repellent surface with exceptional abrasion resistance and ultra-violet light stability.

Unlike other coatings it contains the added advantage of ceramic particles (minute hollow spheres). These particles are the heat and cold dissipating element in the CERATECH HH200 Coating which gives it the ability to save on heating and cooling costs.

CERATECH HH200 also makes an excellent coating for the protection of personnel from burns by accidental contact on boilers, steam pipes and many other areas.

CERATECH HH200 offers superior corrosion protection compared to conventional insulation.

CERATECH HH200 is white in colour.

CERATECH HH200 insulates and reduces surface temperatures enough for the application of inexpensive top coats.

Minor repairs can be done swiftly and easily with a brush on application to the effected area.

Outstanding Features

·     Non Toxic
·     Corrosion protection
·     Rust & Mildew resistant
·     Moisture repellent
·     Energy savings
·     Abrasion resistant
·     Easy to clean (soap & water)
·     Flame resistant
·     Virtually maintenance free

Application

Surfaces must be dry and free of oil, dirt, flaking rust, and other contaminants which could affect the bond of CERATECH HH200. Surfaces should be roughened with sandpaper or steel wool to assist the bond of CERATECH HH200.

Sand blasting / shot blasting is only necessary when applying CERATECH HH200on to Stainless Steel surfaces.

Apply CERATECH HH200 in multiple coats (5-7) of 250 microns (WFT) each until a total of 1000 microns (DFT) is reached.

CERATECH HH200 requires careful mechanical mixing before application.

CERATECH HH200 is preferably applied by brush but can be applied by airless spray and should be applied evenly without build-up.

Drying time of multiple coats will be assisted if surface is in operation and heated during application and each new coat can be applied as soon as the previous coat is dry to the touch.

Precautions and Warnings

Do not take internally. Avoid contact with eyes. If solution does come in contact with eyes, flush immediately with water and contact a physician for medical attention. Avoid prolonged contact with skin or breathing of spray mist. KEEP OUT OF REACH OF CHILDREN. KEEP FROM FREEZING

Coverage

Recommended coverage is 1 m² per litre ( 1000 µm ) DFT – (optimum thickness).

Uses

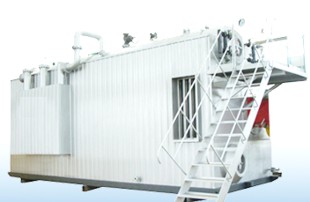

• Boilers
• Cookers
• Ovens
• Furnaces
• Steam pipes
• Valves
• HVAC Ductwork or Hot Air Ducts
• Heat exchangers
• Refractories
• Hot water tanks
• Where safety is important
